AquaMAX Gas
Call: (08) 8444 7311
Reduce your energy expenses by as much as 50% telephone Adelaide Hot Water today!

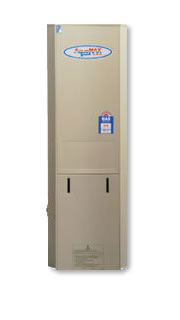

AquaMAX Gas Hot Water
AquaMAX gas water heaters are efficient, cost effective and dependable solutions for all your hot water needs. They operate at over 84% thermal efficiency and so create less greenhouse emissions, and provide considerable savings with reduced gas consumption. AquaMAX Gas Water Systems use the latest technology, quality parts and they are backed by 5 and 10 year cylinder warranties.
AquaMAX Gas Hot Water Heaters feature:
- 5 Star Energy Rating
- Five & Ten Year Cylinder Warranty
- Up to 390 Litres First Hour Capacity
- Twin Temperature Delivery (Kit Required)
- Use Multiple Taps Concurrently
- No Fluctuating Temperatures
Adelaide Hot Water TM provide AquaMAX gas water heater installation, servicing, repairs and maintenance. Below are the current AquaMAX systems that are available. These hot water systems include the MAXI-namel Cylinder – AquaMAX G270 VE Gas Hot Water System and the Stainless Steel Cylinder – AquaMAX G270 SS Gas Hot Water System, AquaMAX G340 SS Gas Hot Water System and theAquaMAX G390 SS Gas Hot Water System. Need more information? Not sure which AquaMAX Gas Water Heater is right for you? Call your friendly local Adelaide hot water plumbing specialists on (08) 8444 7311.
AquaMAX Gas Hot Water Systems
AquaMAX G270 VE
AquaMAX G270 VEGas Hot Water System
- 2 to 4 People
- 5 Star Energy Rating
- 5 Year Cylinder Warranty
- MAXI-namel Cylinder
- 270 LitreFirst Hour Capacity
- Natural Gas or LPG
- External Installation
AquaMAX G270 SS
AquaMAX G270 SSGas Hot Water System
- 2 to 4 People
- 5 Star Energy Rating
- 10 Year Cylinder Warranty
- Stainless Steel Cylinder
- 270 LitreFirst Hour Capacity
- Natural Gas or LPG
- External Installation
AquaMAX G340 SS
AquaMAX G340 SSGas Hot Water System
- 2 to 5 People
- 5 Star Energy Rating
- 10 Year Cylinder Warranty
- Stainless Steel Cylinder
- 340 LitreFirst Hour Capacity
- Natural Gas or LPG
- External Installation
AquaMAX G390 SS
AquaMAX G390 SSGas Hot Water System
- 3 to 6 People
- 5 Star Energy Rating
- 10 Year Cylinder Warranty
- Stainless Steel Cylinder
- 390 LitreFirst Hour Capacity
- Natural Gas or LPG
- External Installation
AquaMAX Gas Hot Water Systems – Technical Specifications
Aquamax Hot Water from Adelaide Hot Water
Aquamax water heaters from Adelaide Hot Water offer five star energy efficiency that has all your needs covered at both ends of the scale.
From the super-efficient Aquamax G270 VE with the latest MAXI-enamel cylinder, to the groundbreaking stainless steel G270 SS, G340 SS and G390 SS.
Because these Aquamax units are mains pressure, they can keep up with the highest hot water demands even when you turn on the second, third or fourth tap, the flow remains constant.
Click on the tabs to see the information on your preferred AquaMAX hot water system from Adelaide Hot Water.
The AquaMAX G270 VE is designed to run on either natural or LPG gas and offers impressive capacity. The AquaMAX 270 offers five star energy efficiency with twin anodes and a vitreous enamel lined cylinder. The AquaMAX G270 VE is specifically designed for installation in new homes where an approved tempering valve must be fitted by regulation. The AquaMAX G270 VE generates a massive 270 litres of 50ºC hot water in the first hour (based on ambient temp. of 15ºC). AquaMAX state you’ll be hard pressed to find a better output from a unit this size. The AquaMAX 270 can be used for either replacing an old unit in an exisiting home or for installation in a new home. The AquaMAX 270 is designed for easy external installation, the impressive capacity of the AquaMAX 270 is matched by an equally impressive, five year cylinder warranty.
Model | G270 VE |
Number of People Served | 2 to 4 People |
Cat. No. | G270VE |
Gas Type | Natural/LPG |
Tank Capacity | 135 Litres |
Nominal Gas Consumption | 30 MJ/Hr |
AGA Star Rating Index | 5 Stars |
Recovery Rate at 45°C Rise | 135 Litres/Hr (Based on cold water temperature of 15ºC) |
Installation Type | External Only |
Pressure & Temperature Relief Valve Setting | 1400 kPa/99ºC |
Max. Water Supply Pressure w/o ELV | 1120 kPa |
Tank Material | Vitreous Enamel Lined |
Water Inlet Connection | Rp 3/4″ (20mm) Female |
Water Outlet Connection | Rp 3/4″ (20mm) Female |
Gas Connection | 1/2″ Flared Compression |
Warranty (Cylinder) | 5 Years |
WaterMark Licence No. | WMKA00200 |
Overall Height | 1410mm |
Width (Approx.) | 475mm |
Depth (Approx.) | 565mm |
AGA Approval No. | AGA6705G |
Weight Empty (Approx.) | 65 kg |
The AquaMAX G270 SS is able to run on either natural or LPG gas and offers five star energy efficiency. The AquaMAX G270 SS offers the added advantage of a stainless steel cylinder backed by a ten year cylinder warranty. The AquaMAX G270 SS can be installed in new homes where an approved tempering valve must be fitted by regulation. The AquaMAX G270 SS generates a huge 270 litres of 50ºC hot water in the first hour of operation (this is based on ambient temp. of 15ºC). The AquaMAX G270 SS stainless steel cylinder can be used for replacing an old unit in an existing home or for a new installation in a new home.
Model | G270 SS |
Number of People Served | 2 to 4 People |
Cat. No. | G340SS |
Gas type | Natural |
Tank Capacity | 155 Litres |
Nominal Gas Consumption | 40 MJ/Hr |
AGA Star Rating Index | 5 Stars |
Recovery rate at 45°C rise | 185 Litres/Hr (Based on cold water temperature of 15ºC) |
Installation type | External only |
Pressure & Temperature Relief Valve setting | 1400 kPa/99°C |
Max. Water Supply Pressure w/o ELV | 1120 kPa |
Tank Material | Stainless Steel |
Water Inlet Connection | Rp 3/4″ (20mm) Female |
Water Outlet Connection | Rp 1/2″ (15mm) Female |
Gas Connection | 1/2″ flared compression |
Warranty (Cylinder) | 10 years |
WaterMark Licence No. | WMKA00200 |
Overall Height | 1635mm |
Width (approx.) | 520mm |
Depth (approx.) | 610mm |
AGA Approval No. | AGA6114G |
Weight Empty (approx.) | 65 kg |
The AquaMAX G340 SS is a five star energy rated hot water heater that has all the features of the G390 SS, with the exception of the mixing valve. The AquaMAX G340 SS is specifically designed for installation in new homes, where an approved tempering valve must be fitted by regulation to guard against hot water scalding. Your hot water installation will be fitted with an approved tempering valve on the hot water line, restricting the hot water output to a maximum of 50ºC (in this type of installation, the mixing valve is of no additional benefit). You may also add our multi-fit Tempering Valve Kit to the AquaMAX G340 SS, and vary the hot water temperature at each point in your home. This will allow you to set two different hot water temperatures for different room in the home. For example, you could set the kitchen and laundry at 65ºC and the bathroom and ensuite outlets receiving 50ºC or lower.
Model | G340 SS (without MIX) |
Number of People Served | 2 to 5 People |
Cat. No. | G340SS |
Gas type | Natural |
Tank Capacity | 155 Litres |
Nominal gas consumption | 40 MJ/Hr |
AGA Star Rating Index | 5 Stars |
Recovery Rate at 45°C Rise | 185 Litres/Hr (Based on cold water temperature of 15ºC) |
Installation Type | External only |
Pressure & Temperature Relief Valve Setting | 1400 kPa/99°C |
Max. water supply pressure w/o ELV | 1120 kPa |
Tank Material | Stainless Steel |
Water Inlet Connection | Rp 3/4″ (20mm) Female |
Water Outlet Connection | Rp 1/2″ (15mm) Female |
Gas connection | 1/2″ flared compression |
Warranty (Cylinder) | 10 years |
WaterMark Licence No. | WMKA00200 |
Overall height | 1635mm |
Width (approx.) | 520mm |
Depth (approx.) | 610mm |
AGA Approval No. | AGA6114G |
Weight empty (approx.) | 65 kg |
The AquaMAX G390 SS gas hot water system offers a patented inbuilt mixing valve that gives you a massive 390 litres of hot water in its first hour of delivery. The AquaMAX 390 is incredibly efficient with a five star energy rating. The AquaMAX G390 SS tank holds a huge 155 litres of hot water and the stainless steel cylinder is able store hot water at much higher temperatures than the vitreous enamel tank. The AquaMAX G390 SS a mixing valve (Control A) that adds a controlled mix of cold water at the unit’s hot water outlet. This allows the AquaMAX G390 at least 205 litres or more hot water delivery in the initial draw. This is based on a hot water temperature of 60ºC or at the setting you choose when Control B is set at 4.5 or higher. With 185 litres recovery per hour after that, the 390 is the largest volume domestic storage water heater available. As an installation option, your plumber can install twin temperature delivery. This will give you greater flexibility so you can enjoy the convenience of 65ºC hot water in the kitchen and laundry when you need it, while taking comfort in the knowledge that a safer 50ºC or lower temperature can be set for the bathroom hot water taps.
Model | G390 SS (with MIX) |
Number of People Served | 3 to 6 People |
Cat. No. | G390SS |
Gas type | Natural |
Tank Capacity | 155 Litres |
Nominal gas consumption | 40 MJ/Hr |
AGA Star Rating Index | 5 Stars |
Recovery Rate at 45°C Rise | 185 Litres/Hr (Based on cold water temperature of 15ºC) |
Installation Type | External only |
Pressure & Temperature Relief Valve Setting | 1400 kPa/99°C |
Max. water supply pressure w/o ELV | 1120 kPa |
Tank Material | Stainless Steel |
Water Inlet Connection | Rp 3/4″ (20mm) Female |
Water Outlet Connection | Rp 1/2″ (15mm) Female |
Gas connection | 1/2″ flared compression |
Warranty (Cylinder) | 10 years |
WaterMark Licence No. | WMKA00200 |
Overall height | 1635mm |
Width (approx.) | 520mm |
Depth (approx.) | 610mm |
AGA Approval No. | AGA6114G |
Weight empty (approx.) | 65 kg |
